EXTENDED DATASHEETS FOR GREATER TRANSPARENCY IN PROJECT PLANNING
NOW EVEN MORE COMPREHENSIVE
__
Our product datasheets are continuously evolving to make project planning and implementation even easier. From now on, you will find additional key figures on the first page for quick orientation. In addition, a second page has been introduced with tables and graphics offering deeper insights into Maintenance Factor, Current Levels, Acoustic Performance, and Luminaires per Circuit Breaker. This way, you have both essential data and practical additional information at a glance for more efficient project planning.

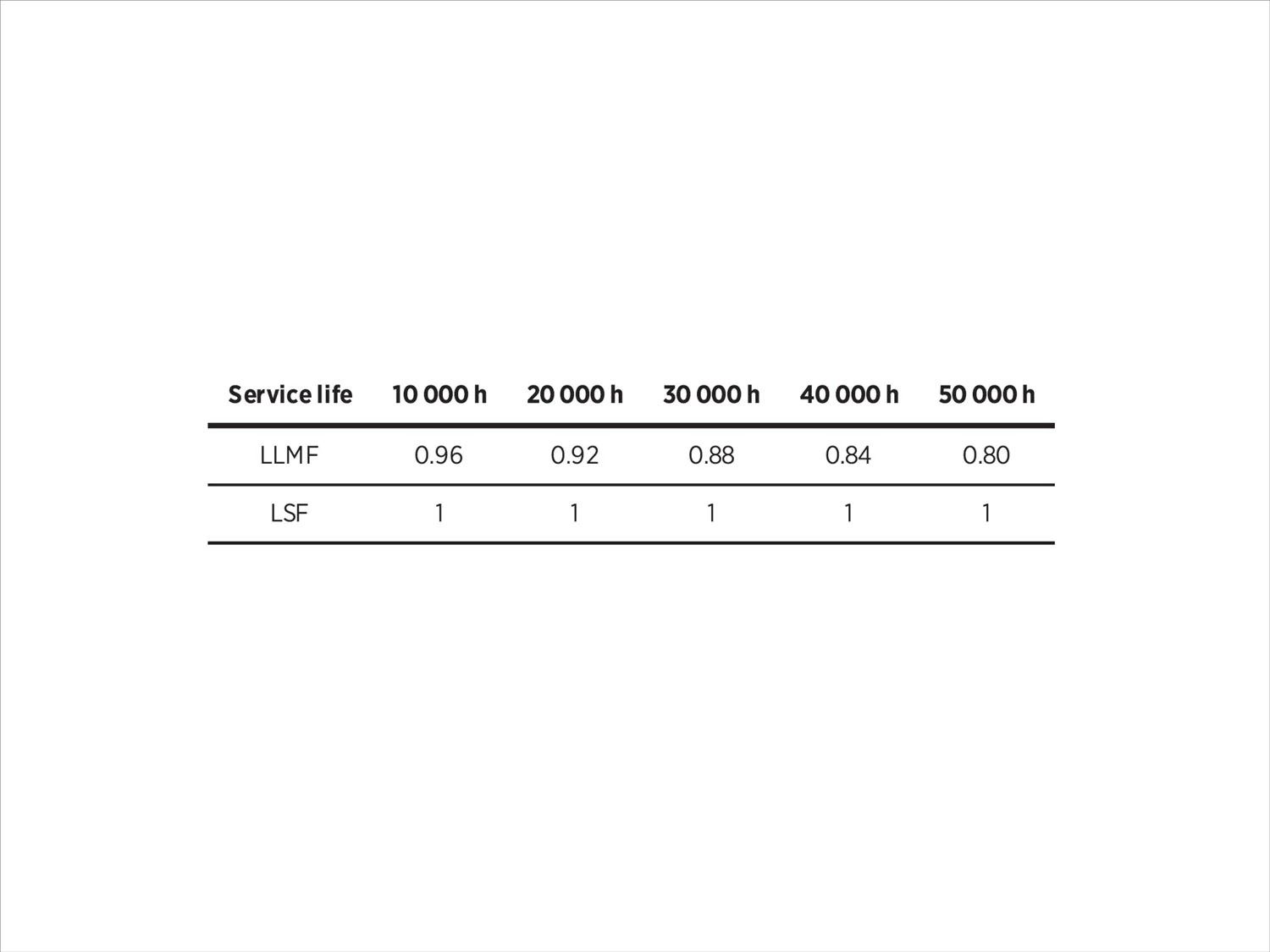

Maintenance Factor
The Maintenance Factor (MF), as defined in EN 12464-1, is calculated as MF = LLMF × LSF × LMF × RMF. LLMF (Lamp Lumen Maintenance Factor) and LSF (Lamp Survival Factor) depend on the luminaire type and quality, while LMF and RMF are influenced by environmental factors like dust, room conditions, and maintenance intervals. This information is available for all PROLICHT luminaires.

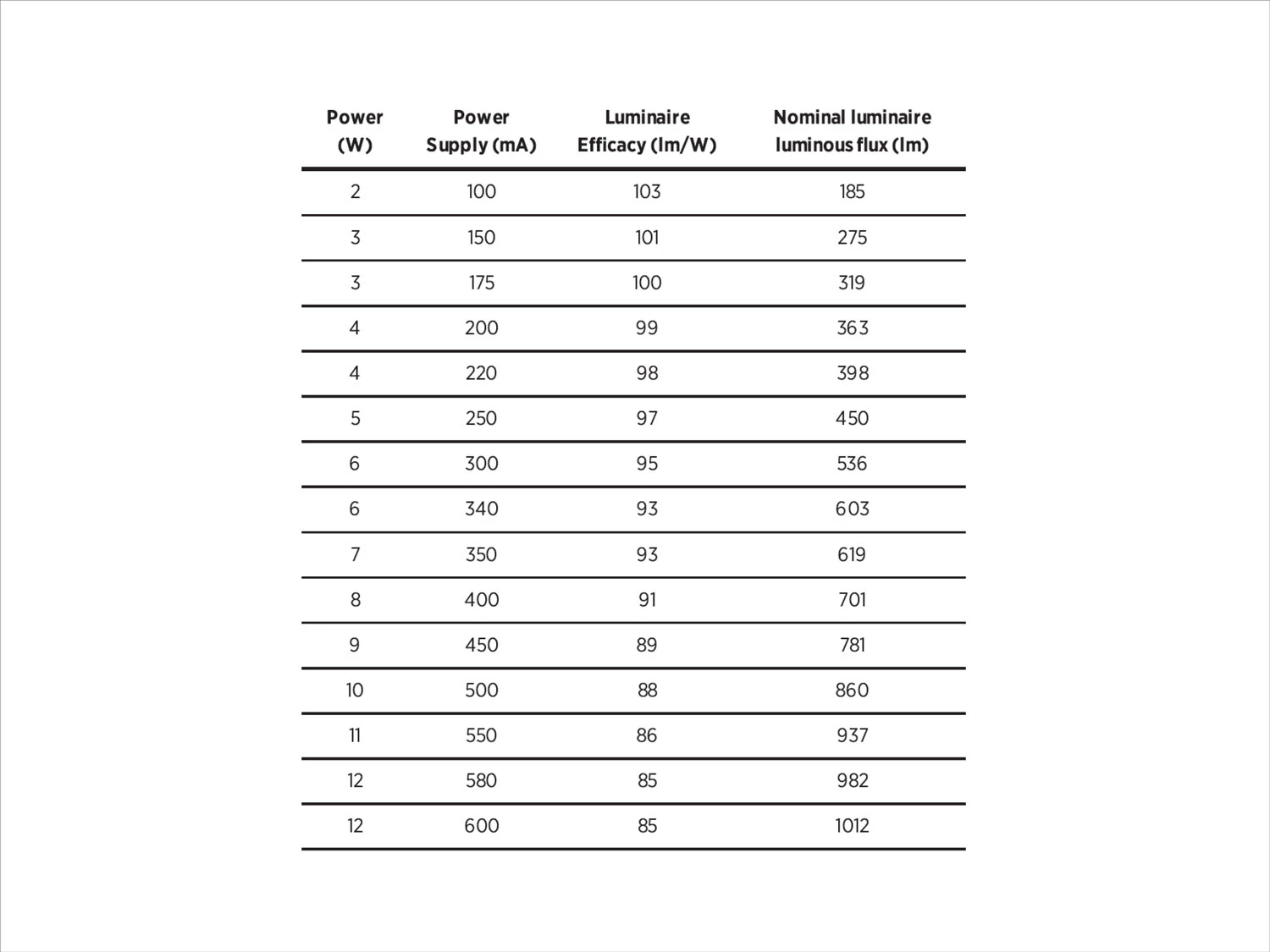

Current Levels
This table provides an overview of the electrical characteristics of the luminaires at different current levels. It includes information on power consumption, power supply, efficacy, and luminous flux for each level. The values are based on measurements conducted in accordance with the relevant standards and are intended to assist in the selection and planning of lighting systems. This information is available for all PROLICHT luminaires with an external driver.
Acoustic Performance
The graphic shows the equivalent sound absorption per object (Aobj) at the third-octave-band center frequency in accordance with ISO 20189. During the measurement, pink noise was used as the excitation signal in a hard-walled room. Combined with the surface area of the acoustic material, this demonstrates the high absorption capability of our acoustic luminaires. This information is available for all acoustic luminaires.

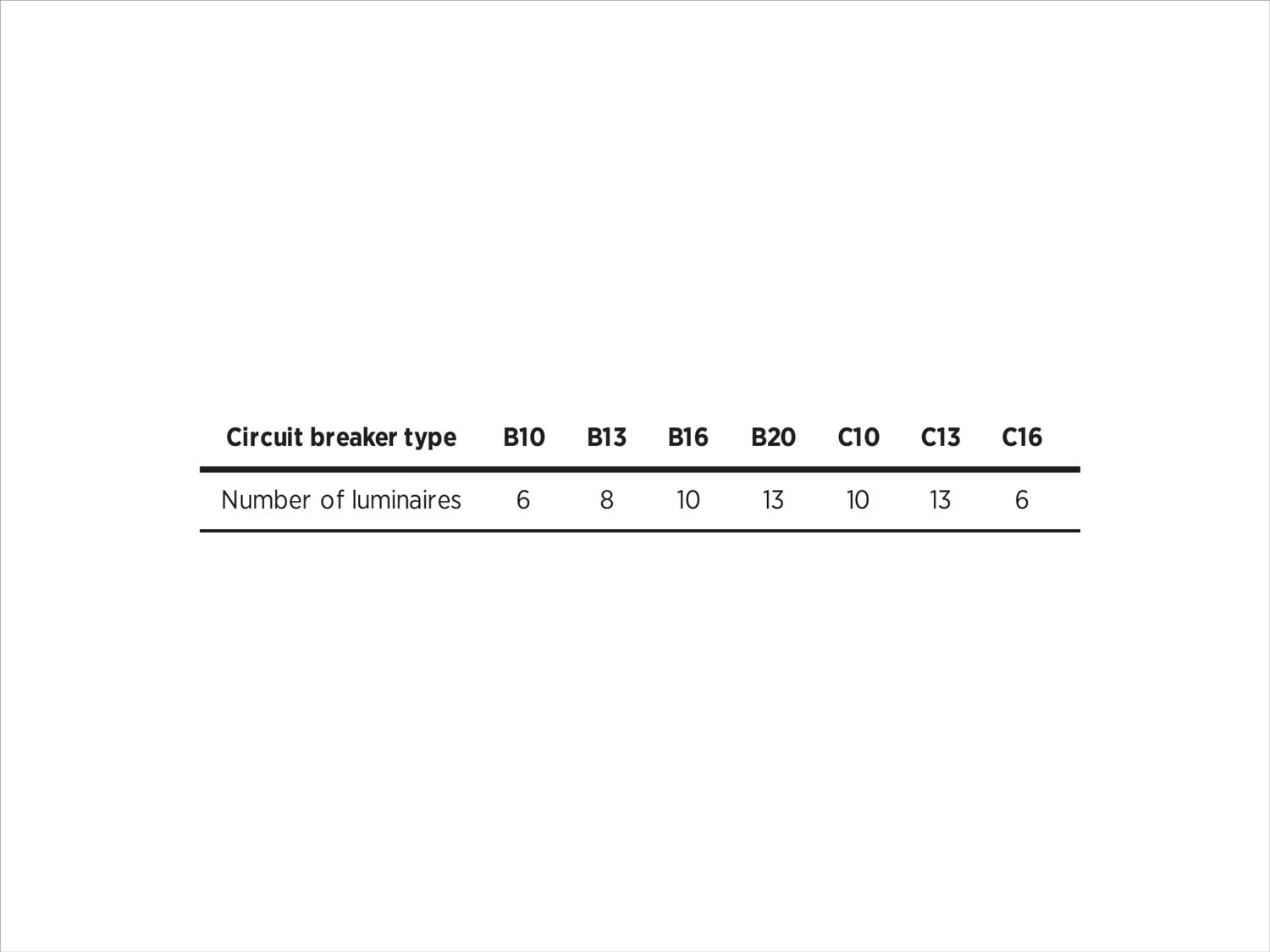

Luminaires per Circuit Breaker
This table provides an overview of different types of circuit breakers and the maximum number of luminaires that can be connected to each breaker type. The permissible number depends on the characteristics of the circuit breaker (e.g., Type B, C, or D) as well as the power consumption and inrush current of the luminaires used. These values serve as a reference for planning electrical installations in lighting applications. This information is available for all luminaires with an integrated driver.
Configure your luminaire
Create your individual configuration and download the corresponding datasheet – either directly in the configurator or later in MYPROLICHT.

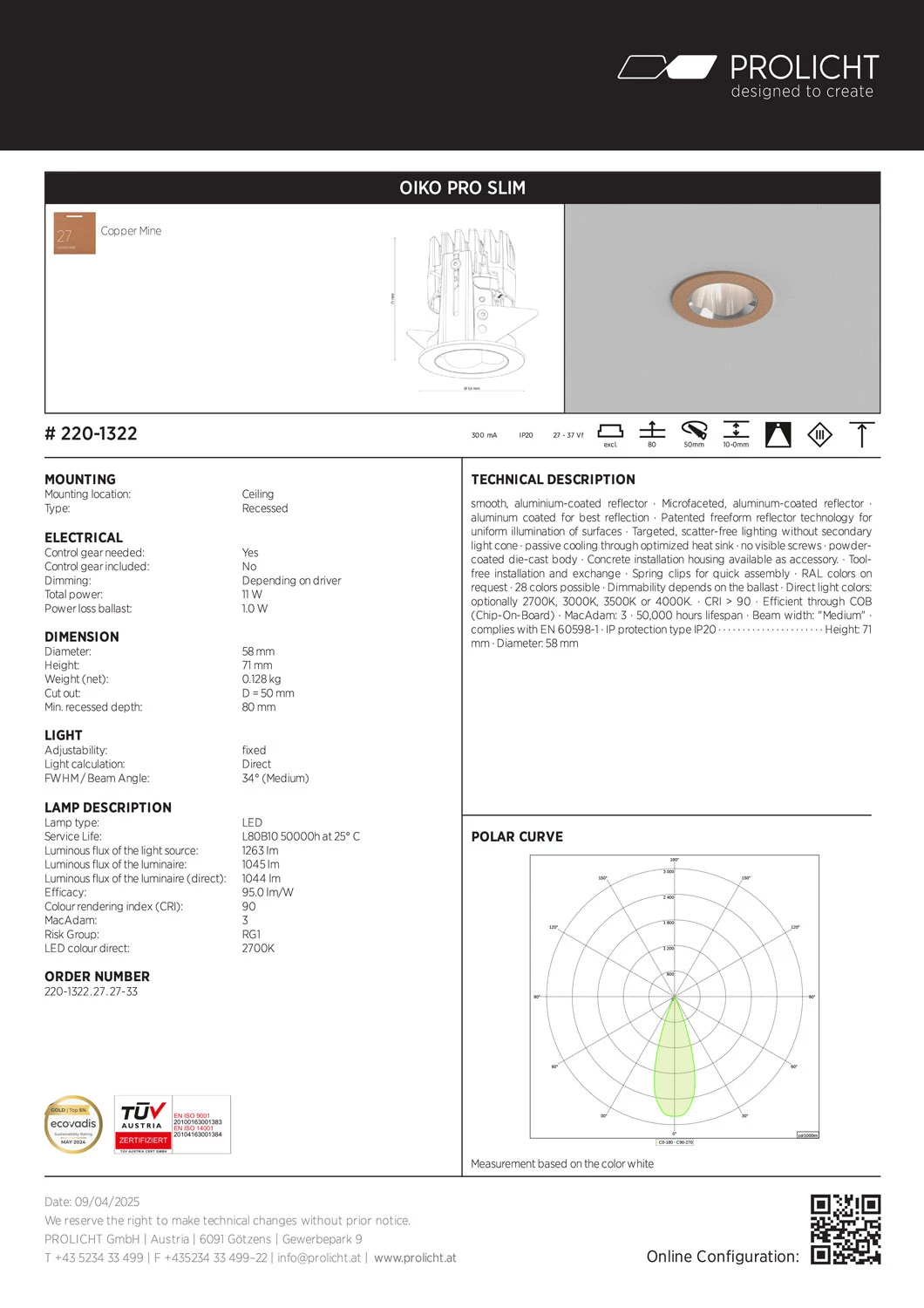

Example datasheet
Download an example datasheet and get a first impression of the new additional information.
AN ESSENTIAL TOOL
__
The PROLICHT datasheets are much more than a technical requirement – they are a central planning tool for you and your project. Clearly structured, they combine all relevant information about a luminaire:
- clear guidance for integration into architectural concepts,
- detailed specifications on luminous flux, color temperature, and glare control,
- practical information on wiring, load, and circuit breaker allocation, and
- straightforward comparison between different luminaires and configurations.
ONE CLICK TO CONFIGURATION
__
A special advantage: every datasheet includes a QR code that takes you directly to the PROLICHT configurator. This allows you to move seamlessly from planning to configuration and ordering.
Thanks to the new content and the clear structure, PROLICHT datasheets are an indispensable planning and working tool. They combine comprehensive technical details with practical additional information and bridge the gap to digital configuration. This ensures your projects can be implemented not only faster but also more reliably – in line with our brand promise: DESIGNED TO CREATE.
Additional Download Formats
In addition to datasheets, PROLICHT offers you a wide range of downloads, including Product Data, 3D Data, Planning Data, AUTOCAD blocks, and exchange formats. This allows you to seamlessly integrate our luminaires into your planning process and access all relevant data for smooth project execution.
Your Digital Platform
MYPROLICHT is your central platform for managing configured products and projects. Here you always have your configurations at hand and benefit from a direct interface with PROLICHT – enabling efficient collaboration and transparent order processing.
