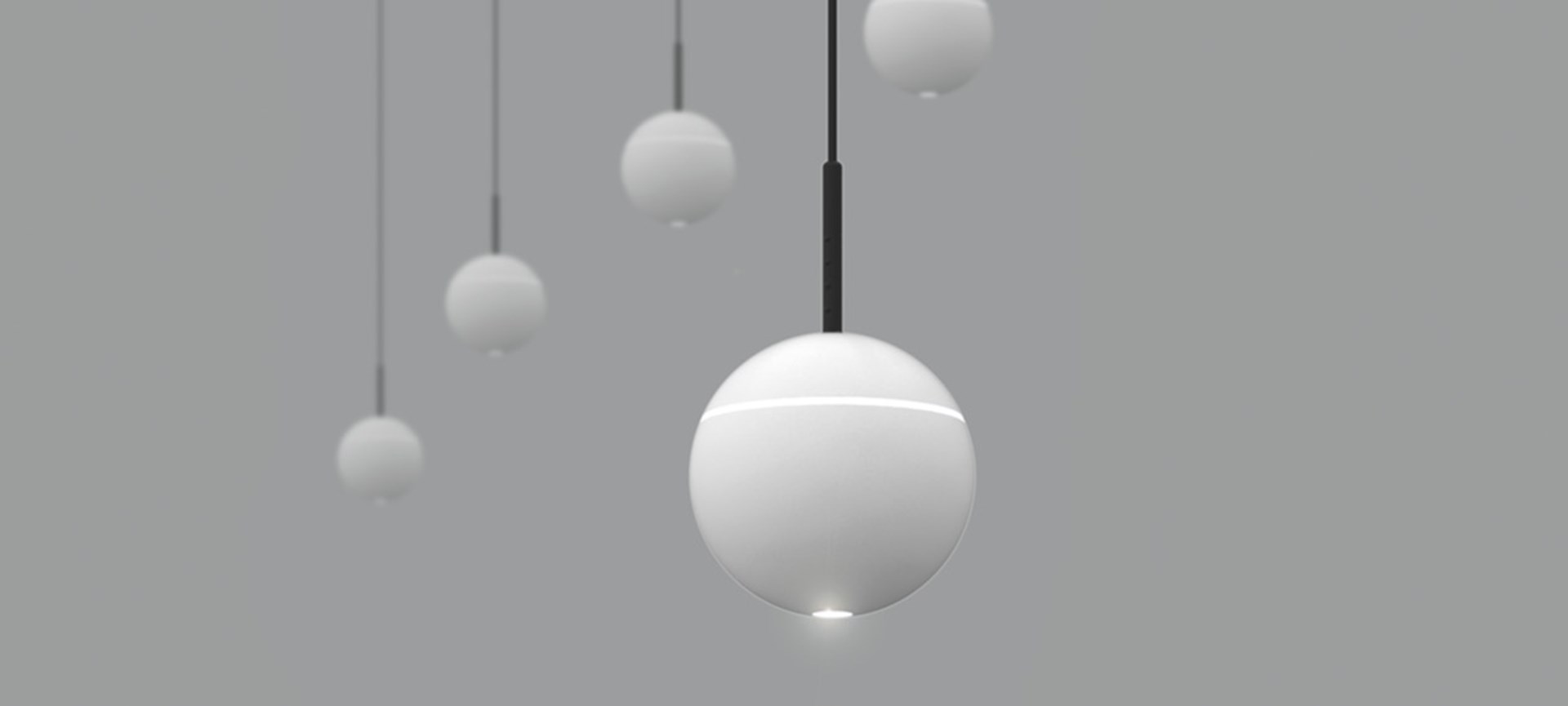

PRO_Web_Index_1264x570px_SNOOKER.jpg PRO_Web_Index_1264x570px_SNOOKER.jpg
SNOOKER

MODELLING YOUR SPACE

SNOOKER is not just a suspended luminaire on its own, its creative installation is essentially based on the innovative concept of the GRAVITY LIFT: The basic idea behind this system is the freedom to change the light in height or position according to your needs at any given time. The magic of the lift system is the infinitely variable adjustability, with an audible click every 10 cm. Firstly, the GRAVITY LIFT allows you to create MODELLING, where you configure your own formation or sculpture within your space or geometry. PROLICHT has developed an online configurator for this to plan your model within the space. A second way to use the lift as SERVING, a tool to not only adjust the height of the SNOOKER suspended lighting, but also to make a linear translation in a trimless, surface mounted or suspended channel.

SNOOKER itself is fitted with the latest Bartenbach LFO technology to ensure glare-free suspended lighting. The spheres are available in 25 standard colours, with (STANDARD) or without light (DECOR), or with a SHINE-coloured line to give a special touch to your design. An ingenious docking system at the end of the wire ensures a quick change and lock for the different spheres. The magnetic installation (48 V DC) of the GRAVITY LIFT allows due to an unique bolt mechanism maximum freedom and flexibility to design and create innovative and customised lighting sculptures. The cleverly-engineered lift also makes it possible to configure a certain pattern with G-BOARDS, using 4 suspended lights each time, in such a way that your ceiling becomes a graphic. SNOOKER is a perfect solution for lobbies, for restaurants where the tables are often rearranged, etc. A real creative solution for HOSPITALITY settings, where every designer can leave their mark on a project.


SNOOKER suitable for

Snooker Technical.jpg Snooker Technical.jpg
SNOOKER

KINETIC PIECE OF ART

With GRAVITY LIFT (both with G-50 CHANNEL or G-BOARD) the height and position of the spherical SNOOKER luminaires can be adjusted easily and flexibly. The variable arrangements create new spatial structures, time and time again. SNOOKER consequently responds wonderfully to changing lighting requirements.

GRAVITY CONCEPT | The heart of the SNOOKER system is the GRAVITY LIFT. The wire is infinitely adjustable over 1.5 m and can be extended by another 3.5 m. An audible click every 10 cm helps the user to adjust an entire line evenly.

EXTENSION WIRE | A special extension system of up to 3.5 m has a special locking mechanism to create the desired suspension height.

TOOL-FREE MOVEMENT | Tool-free installation and adjustment of the GRAVITY LIFT offers designers incredible freedom. An integrated locking system guarantees the electrical contact and a strong mechanical lock.

POWERLINE COMMUNICATION | SNOOKER uses a centralised driver and an integrated DC string to offer full control of each luminaire. A Constant Light Output (CLO) function compensates for natural decline by constantly increasing the output current of the LED throughout its life.

MOUNTING | SNOOKER can be installed in a trimless, surface-mounted or suspended profile. In addition to a mechanical connection, the magnetic fixing of GRAVITY LIFT guarantees an electrical connection with the two integrated 48 V conductors.


Snooker Gravity Lift.jpg Snooker Gravity Lift.jpg
SNOOKER

GRAVITY LIFT CONCEPT

The GRAVITY LIFT concept is the key to the entire SNOOKER system. Creating infinitely variable adjustability over 1.5 m with the option to extend the cable by another 3.5 m was the real challenge during the design and engineering process. An audible click every 10 cm provides real added value for the user during the adjustment process. The extension system has a special locking mechanism to create the desired suspension height. A 48 V magnetic adapter, in combination with integrated electronic, gives the lift maximum flexibility. The GRAVITY LIFT can be installed in a trimless, surfaced mounted or suspended channel with an internal low voltage track.


Snooker Serving.jpg Snooker Serving.jpg
SNOOKER

SERVING WITH GRAVITY LIFT

SERVING with GRAVITY LIFT directs the light where you need it at any time. The combination of vertical adjustment with linear translation in the trimless, surface mounted or suspended channel results in a perfect solution for lobbies, bars and restaurants, where the interior is changing very often. The possibility of an integrated wire extension up to 5 m, including the adjustment over 1.5 m, gives the designer endless possibilities with the same product in rooms with different heights.

Snooker Modelling.jpg Snooker Modelling.jpg
SNOOKER

MODELLING WITH GRAVITY LIFT

Waves are fascinating, when you look at a kinetic sculpture undulating through your space. MODELLING with GRAVITY LIFT gives you the unlimited freedom to compose your own formation and change it at any time. The designer is no longer simply creating a custom piece of art with different SNOOKER pendants (with or without light) but also generating a certain mood in the environment.


Snooker Dual Focus Technology.jpg Snooker Dual Focus Technology.jpg
SNOOKER

LFO LENS TECHNOLOGY

The SNOOKER sphere is fitted with the latest LFO lens technology from Bartenbach. SNOOKER luminaires combined with this patented lenses ensure a glare-free light at work places and offer a very low UGR. The LFO lens is available with a beam angle of 55°.


Snooker G-Board.jpg Snooker G-Board.jpg
SNOOKER

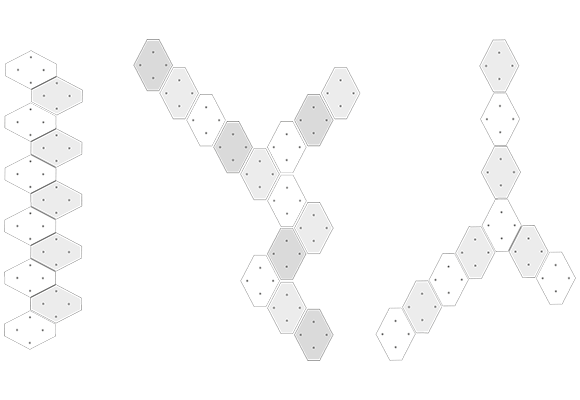

GRAPHICAL COMPOSITION

Modular panels can be combined in a wide range of ways and compositions, allowing architects and designers unlimited creativity in terms of functionality and aesthetics. The panels can be equipped with up to 4 SNOOKER GRAVITY LIFTs, which combine with light and playful colours to turn your ceiling into a graphical piece of art.


Snooker Docking System NEU.jpg Snooker Docking System NEU.jpg
SNOOKER

DOCKING SYSTEM & INDIVIDUAL CONTROL

An ingenious docking system integrated in the sphere ensures a quick change and lock of the different types of SNOOKER. The product family consists of a non-illuminated sphere, one with an LFO lens and a version with a SHINE transparent ring (available in 6 colours), adding a special glowing accent to the SNOOKER. Integrated DALI communication allows individual control of each SNOOKER which is a major advantage for planners.


;
