CENTRIQ
MINIMALIST HI-TECH

CENTRIQ

Sophisticated technology, minimalist design: CENTRIQ puts pure lighting effect in the foreground. The trackspots timless housing can be used to achieve general lighting, accent lighting (SUPER SPOT with a beam angle below 8°) or WALLWASH illumination. With CENTRIQ, PROLICHT offers optimal illumination with a discreet appearance for a wide range of applications. CENTRIQ is fitted with the Exact Positioning System (EPS), which was developed by PROLICHT. With the aid of this perfected technology, the lamps can be effortlessly aligned and securely fixed to illuminate a very precise point

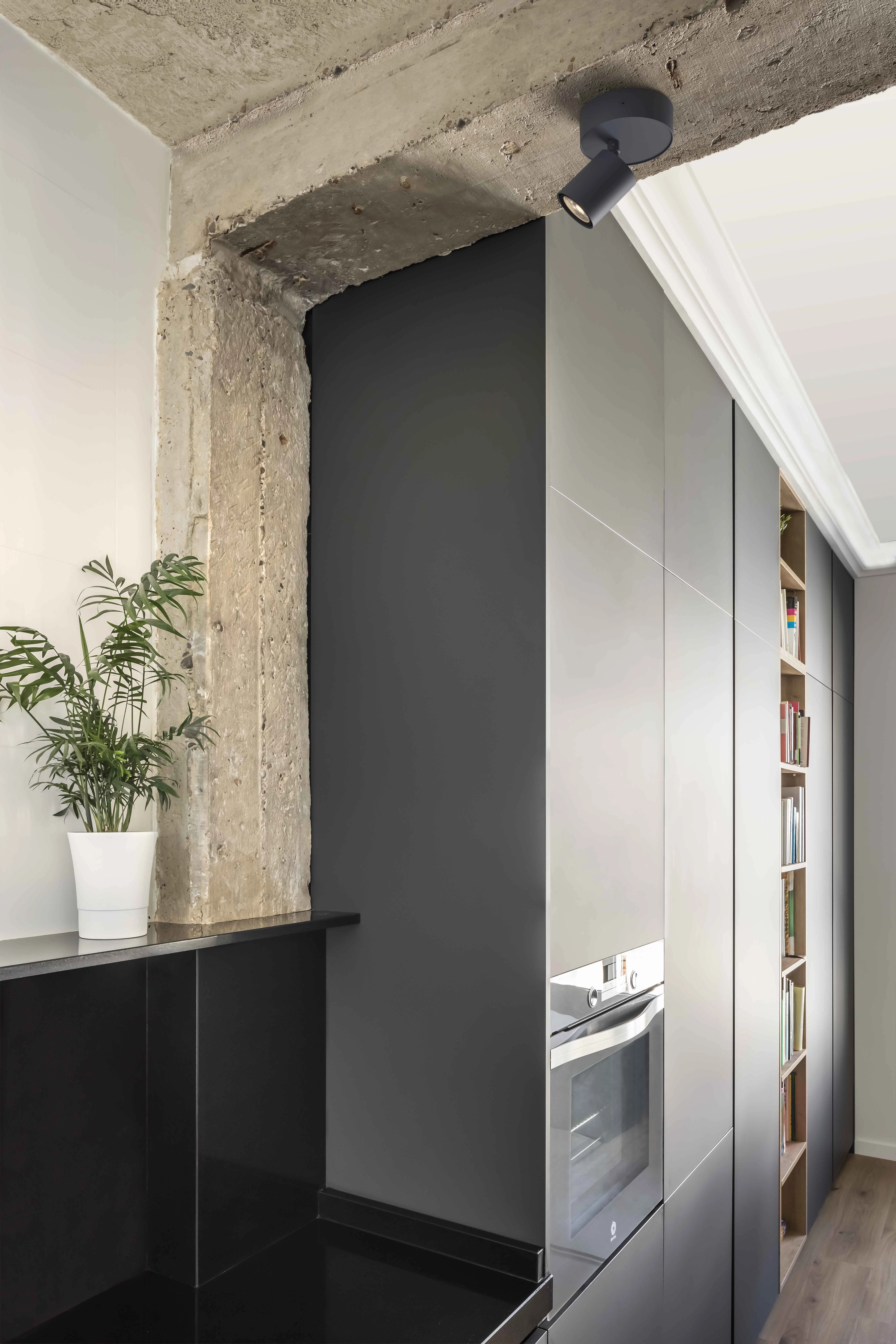

NEW: CENTRIQ IN FOR 3-PHASE TRACKS

The CENTRIQ IN stands for excellent performance at a fair price. Via the rotational joint arm, the direction of light can be changed easily. The adapter with the integrated driver enables an adaption of the lighting concept in the most flexible way. Available in three versions, the downlight is adaptable to various situations in a retail environment.

STANDARD FLEX SUPER SPOT



TECHNICAL DESCRIPTION

These discreet trackspots are simple to position, offer superb heat management and excellent anti-glare protection. A range of light sources, reflectors and housing colours make CENTRIQ extremely flexible.

INTEGRATED DALI ADAPTER | PROLICHT has developed its own DALI-adapter which is completely integrated in a thermoplastic mechanical track fixation.

EPS | The EXACT POSITIONING SYSTEM features a degree indicator for every 10°. The spot clicks into place for adjustment.

THERMAL MANAGEMENT | CENTRIQ manages heat through an aluminium housing in combination with a continuous airflow. This creates ideal conditions for the LEDs to work within their approved temperature range.

REFLECTORS | Different high-precision reflectors offer different beam angles with a high luminous efficiency. A highlight is the SUPER SPOT with a super narrow beam angle of 8° or 10°.

WALLWASH VERTICAL BOOST

Additional cut-offs placed in front of the reflectors limit the longitudinal light beam, providing excellent glare control. The multi-facetted reflector of CENTRIQ WALLWASH has an innovative spoon shape and is arranged at three different angles in the housing. As a result, the round lamp produces a quadrangular light beam that perfectly hugs the shape of the walls.

The precisely calculated surface of each individual facet allows broad and clean illumination without multiple shadows (VERTICAL BOOST) – even when mounted very close to the wall or on high walls (up to 4.5 m height and 1.8 m width).

REGULAR WALLWASH

CENTRIQ WALLWASH VERTICAL BOOST

SUPER SPOT

CENTRIQ super spots with beam angles of only 8° (CENTRIQ 95 / 125) and 10° (CENTRIQ 75 / 60) make it possible to create lighting scenarios with unique accen-tuation and dramatic contrasts. CENTRIQ spotlights can be perfectly adapted to any lighting situationusing special lenses from the PROLICHT LENS PACK or SPECIAL LEDs. On request, special lenses can be developped for special lighting solutions.

EXACT POSITIONING SYSTEM

The EXACT POSITIONING SYSTEM (CENTRIQ 95 / 125) allows the spots to be rotated 340° without any visible change of position from the outside. The light head can be tilted up to 90°. A detailed angle-display on both movement axes provides visual support for a precise adjustment with notches every 10°.

DUAL LOCK SYSTEM

The DUAL LOCK SYSTEM on CENTRIQ 95 / 125 ensures that the lamp is securely fixed in the desired position. The lamp is fixed in the selected position in each of the two movement directions (rotation, tilt) using a grub screw.



Technical data

Product CENTRIQ WALLWASH CENTRIQ CENTRIQ CLICKTRACK CENTRIQ IN FLEX CENTRIQ IN CENTRIQ IN SUPER SPOT
CENTRIQ WALLWASH CENTRIQ CENTRIQ CLICKTRACK CENTRIQ IN FLEX CENTRIQ IN CENTRIQ IN SUPER SPOT
Mounting Option Surface Surface Surface Surface Surface Surface
Dimension
H 230: ⌀ 125
H 135: ⌀ 60
H 215: ⌀ 95
H 150: ⌀ 125
H 182: ⌀ 75
H 104: ⌀ 42
H 129: ⌀ 56
H 92: ⌀ 29
H 92: ⌀ 65
H 105: ⌀ 83
H 80: ⌀ 65
H 105: ⌀ 83
H 80: ⌀ 65
H 105: ⌀ 83
Lumen 1803 - 1929 678 - 5978 257 - 925 1245 2016 - 3030 1362 - 1613
Watt 35.97 13.7 - 52.6 4.29 - 11.53 20.54 23.01 - 36.22 20.54 - 25.72
LED / CCT 2700K, 3000K, 4000K 2700K, 3000K, 4000K 2700K, 3000K, 4000K 2700K, 3000K, 3500K, 4000K 2700K, 3000K, 3500K, 4000K 2700K, 3000K, 3500K, 4000K
Control
DALI Dim
Nicht dimmbar

Some
Some

Some
Some

Some
Some

Some
Some

Some
Some

Some
Some
Protection Rate
IP20

Yes

Yes

Yes

Yes

Yes

Yes
Beamwidth SuperNarrowBeam SuperNarrowBeam, NarrowBeam, Medium, Flood, WideFlood SuperNarrowBeam, NarrowBeam, Medium, Flood, WideFlood SuperNarrowBeam, WideFlood SuperNarrowBeam, Medium, Flood, WideFlood SuperNarrowBeam, NarrowBeam
Adjustability
swiveling
tilting
rotation

Yes
No
Yes

Some
No
Some

Yes
Yes
Yes

No
Yes
Yes

No
Yes
Yes

No
Yes
Yes
Product CENTRIQ CLICKTRACK
CENTRIQ CLICKTRACK
Mounting Option Surface
Dimension
H 104: ⌀ 42
H 129: ⌀ 56
H 92: ⌀ 29
Lumen 257 - 925
Watt 4.29 - 11.53
LED / CCT 2700K, 3000K, 4000K
Control
DALI Dim
Nicht dimmbar

Some
Some
Protection Rate
IP20

Yes
Beamwidth SuperNarrowBeam, NarrowBeam, Medium, Flood, WideFlood
Adjustability
swiveling
tilting
rotation

Yes
Yes
Yes
;
