FORTIES
A Swiss Army Knife
FORTIES structures architecture with precision. The 45 mm profile integrates general, accent and decorative lighting into one coherent system — enabling linear clarity, curved expressions and modular compositions.
✺
Subfamilies
✺ Meet the Family
One Profile. Clear Structure.
Complex lighting concepts often lead to fragmented ceiling designs. FORTIES brings multiple lighting tasks together within one coherent architectural profile, creating continuous structures instead of combining separate systems. Straight runs, curves and transitions follow the logic of the architecture while maintaining a disciplined visual appearance, allowing you to design with one consistent framework rather than making compromises.

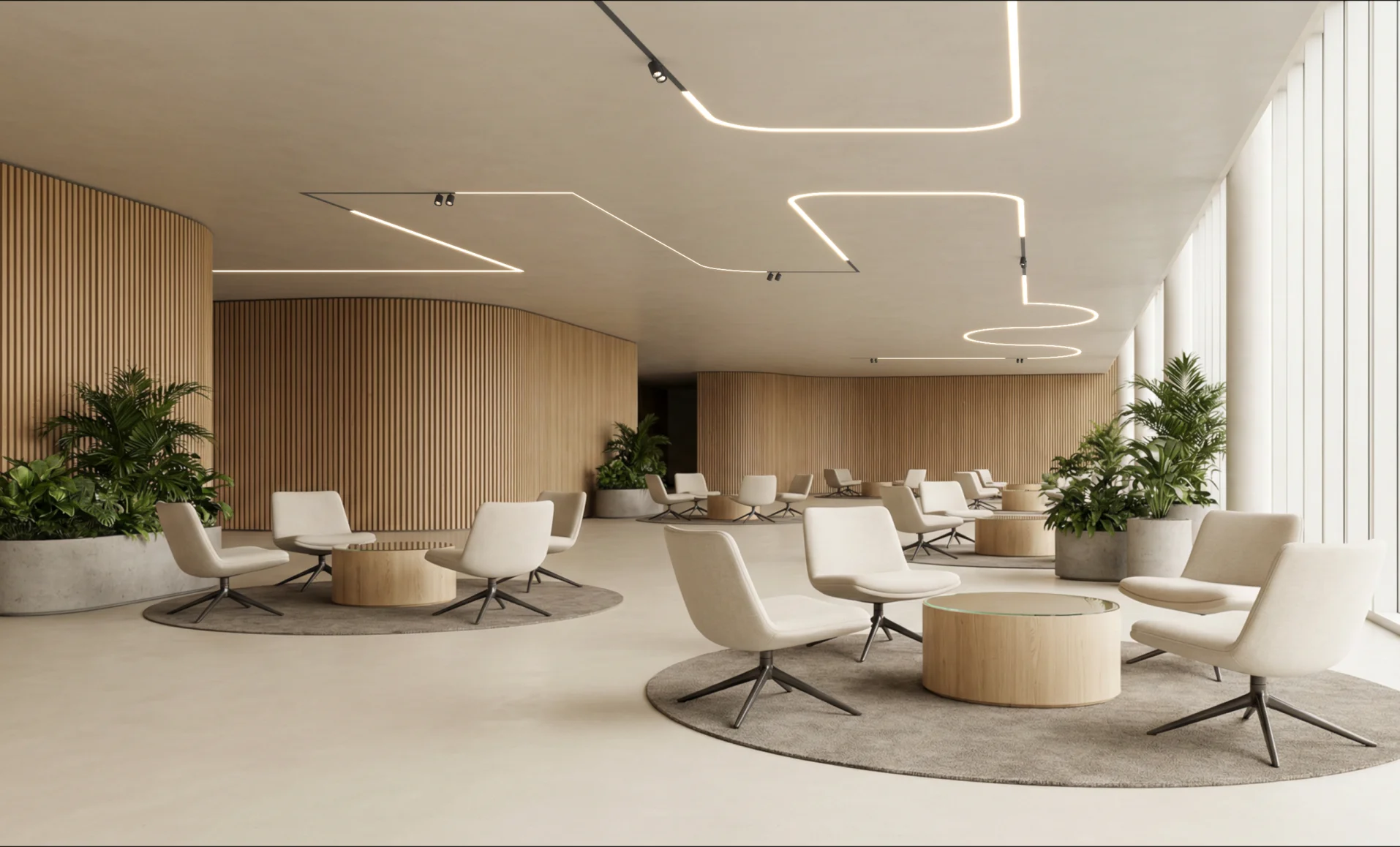

Modular Geometry

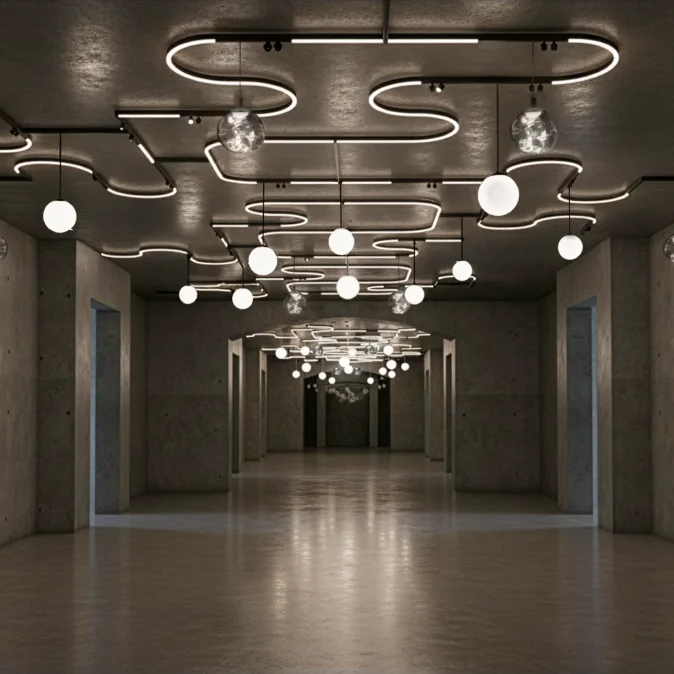

Curves, connectors and cut-to-length elements enable continuous compositions that adapt seamlessly to different architectural layouts without interrupting the ceiling design.
Hybrid Lighting Integration
Linear lighting, low-glare downlights, wallwash modules and adjustable spotlights are integrated within a single 45 mm profile, allowing different lighting tasks to be combined within one consistent system.
✺ Meet the family
Calm Linear Framework
The consistent 45 mm profile creates a clear architectural framework across recessed, surface-mounted and suspended applications. Straight and curved elements maintain proportional continuity while supporting structured zoning and continuous light lines, allowing the system to integrate as part of the architecture rather than appearing as technical infrastructure.
✺ Modular System
Structured Freedom in Modular Form
FORTIES is conceived as a system-based architectural framework that adapts precisely to spatial conditions and design intent. From linear corridors to multidimensional spatial concepts, its modular logic enables seamless continuity and controlled creative freedom.
Linear Precision
Straight modules from 800 mm to 3000 mm form clear, architectural light lines. Available with direct, indirect or combined distribution, they structure pathways, define task areas and create balanced ambient illumination.

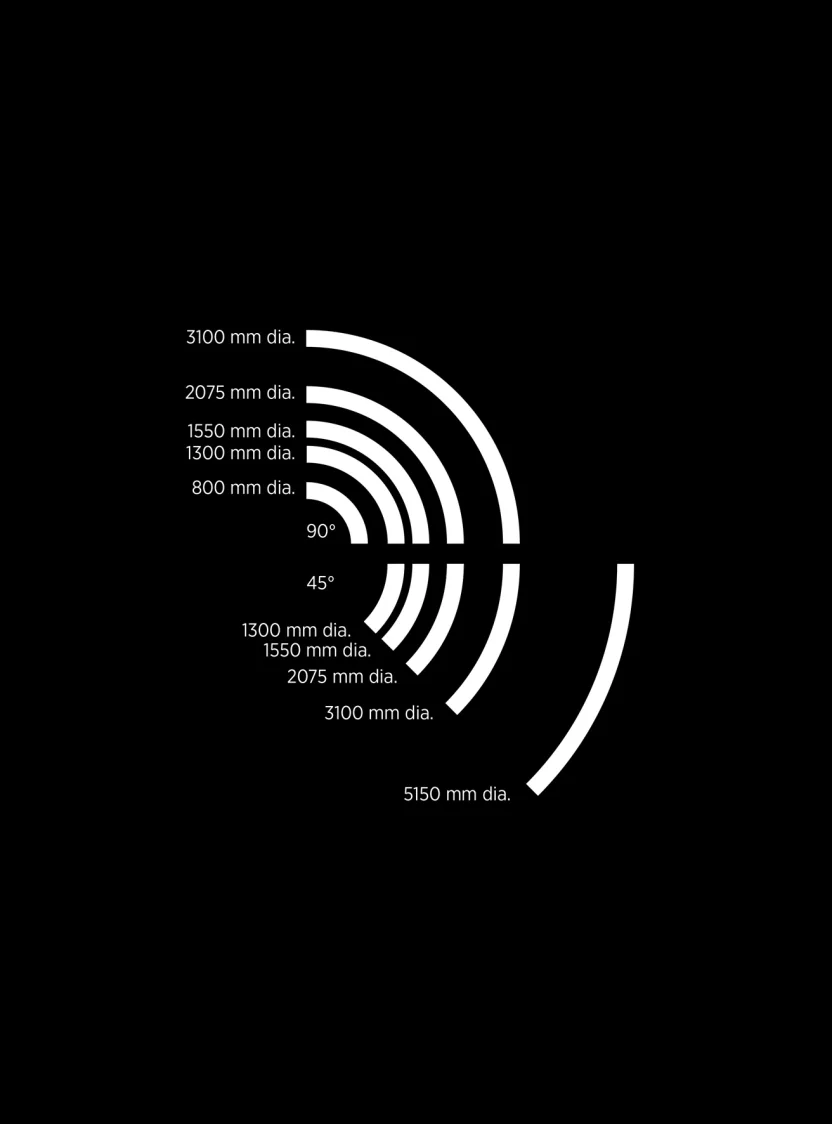

Curved Expression
Curved elements in 90° (800–3100 mm) and 45° (1300–5150 mm) radii introduce fluid transitions and dynamic geometries. With selectable direct or direct-indirect distribution, they allow light to follow architectural movement with clarity and intention.
Three-Dimensional Connectivity
L, T and X connectors extend the system into branching, intersecting or multidirectional compositions. This structural flexibility enables continuous light lines across ceilings and walls — precise, adaptable and architecturally integrated.
✺ Inserts
Flexible Insert Platform
FORTIES supports a wide spectrum of accent, pendant and downlight modules within one coherent profile system.
Centriq In
Oiko Pro In
Linear Insert
Melt Mini
Snooker
Hangover
Imagine Micro
Bilo
Centriq In
Oiko Pro In
Linear Insert
Melt Mini
Snooker
Hangover
Imagine Micro
Bilo
Centriq In
Oiko Pro In
Linear Insert
Melt Mini
Snooker
Hangover
Imagine Micro
Bilo
FORTIES
Combine profiles, connectors, inserts and control options in the FORTIES 3D Configurator to build a system tailored precisely to your project.
Configure Now
Integrated Multi-Module Profile System
FORTIES combines linear light modules, adjustable downlights and accent inserts within a unified 45 mm aluminium profile. Electrical routing and mechanical interfaces are integrated within the continuous section.
Light Distribution & Optics
◍

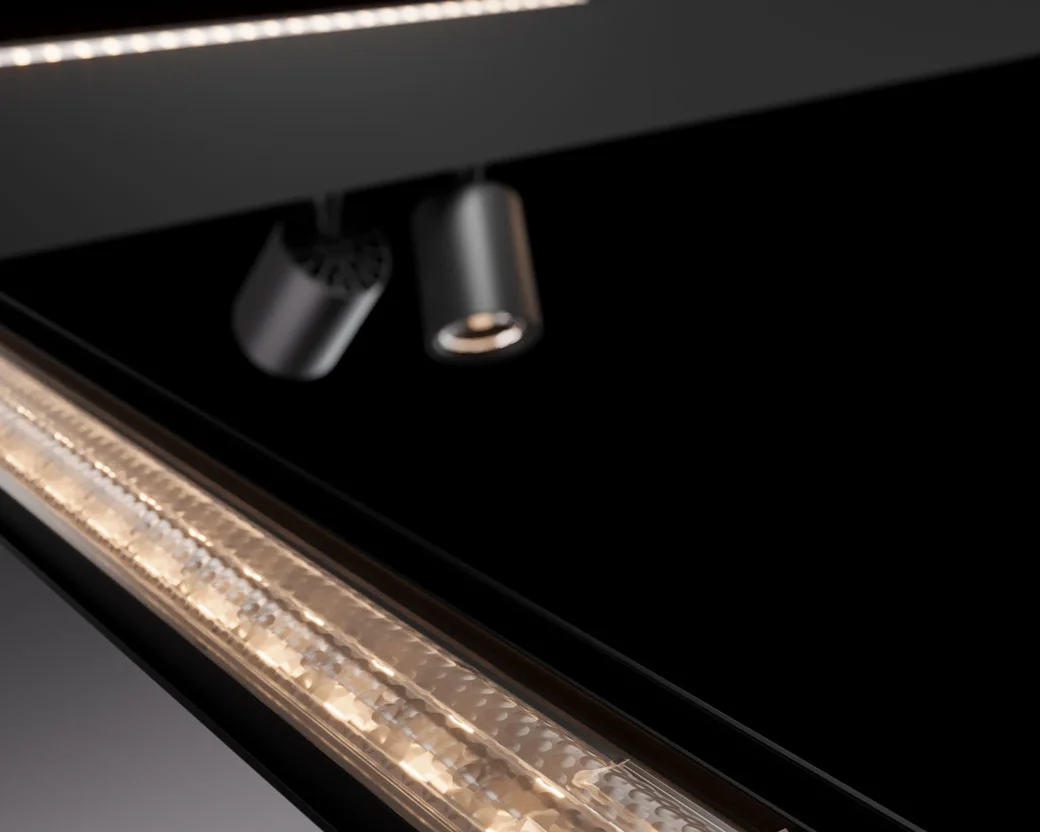

Available with direct, indirect or direct/indirect light distribution. A comprehensive range of optics includes Opal, Microprism, Clear Microprism, Glare Control, Raster, Wallwash and Double Asymmetric. Optional indirect modules can be equipped with the PROLICHT Batwing Lens, creating a wide and uniform ceiling illumination for enhanced visual comfort.
Light Colours
✲
Available in 2700 K, 3000 K, 3500 K, 4000 K and Tunable White (2700K - 6500K), supporting lighting concepts that adapt to different activities and times of day.
Controls & Smart Integration
◔
Supports On/Off, DALI, Casambi and Matter. Optional daylight and presence sensors are available within DALI configurations to improve energy efficiency and user comfort.
Efficiency & Output
◉
High-efficiency optical systems achieve luminous efficacies of up to 145.14 lm/W. Combined with the Clear Microprism optic, the system reaches efficiencies of up to 86.2%, delivering powerful illumination with excellent energy performance.
Visual Comfort
◍
FORTIES is designed for demanding architectural environments with a strong focus on visual comfort. The optional Black Raster optic achieves UGR < 10, while Microprism and Glare Control optics provide comfortable, glare-controlled illumination across a wide range of applications.
Protection
◉
FORTIES is designed for interior architectural applications. The available protection rating depends on the selected module and system configuration.
Consolidate diverse lighting functions into one architectural line.
✺ Applications
Structured Light for Dynamic Workspaces
Modular compositions enable adaptable, future-oriented lighting concepts.

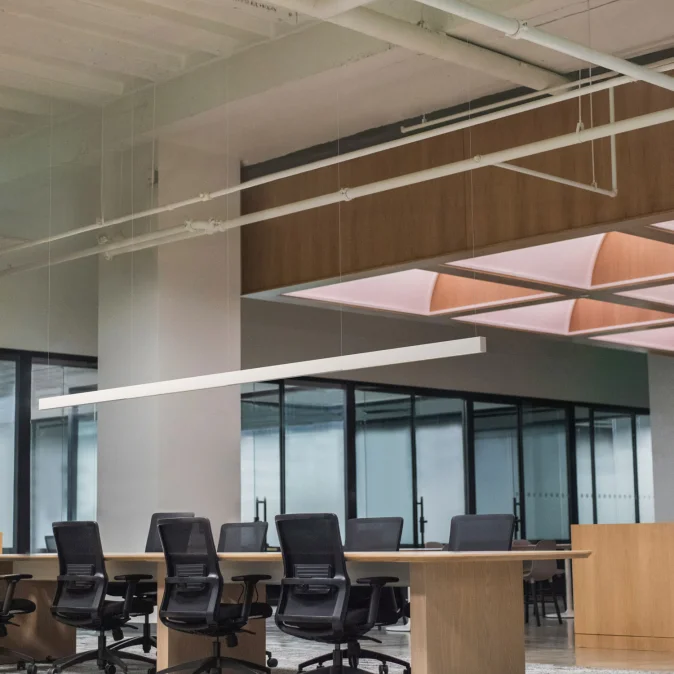

Office
FORTIES creates highly efficient, glare-controlled lighting environments tailored to professional workspaces. Tunable White and integrated control options support dynamic workplace concepts.

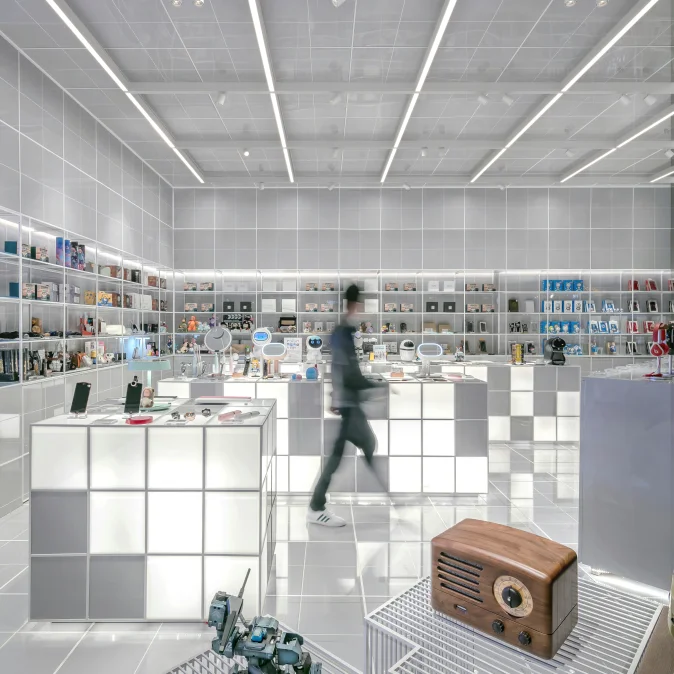

Retail
Curved modules and precise inserts guide customer attention and define zones within retail environments.

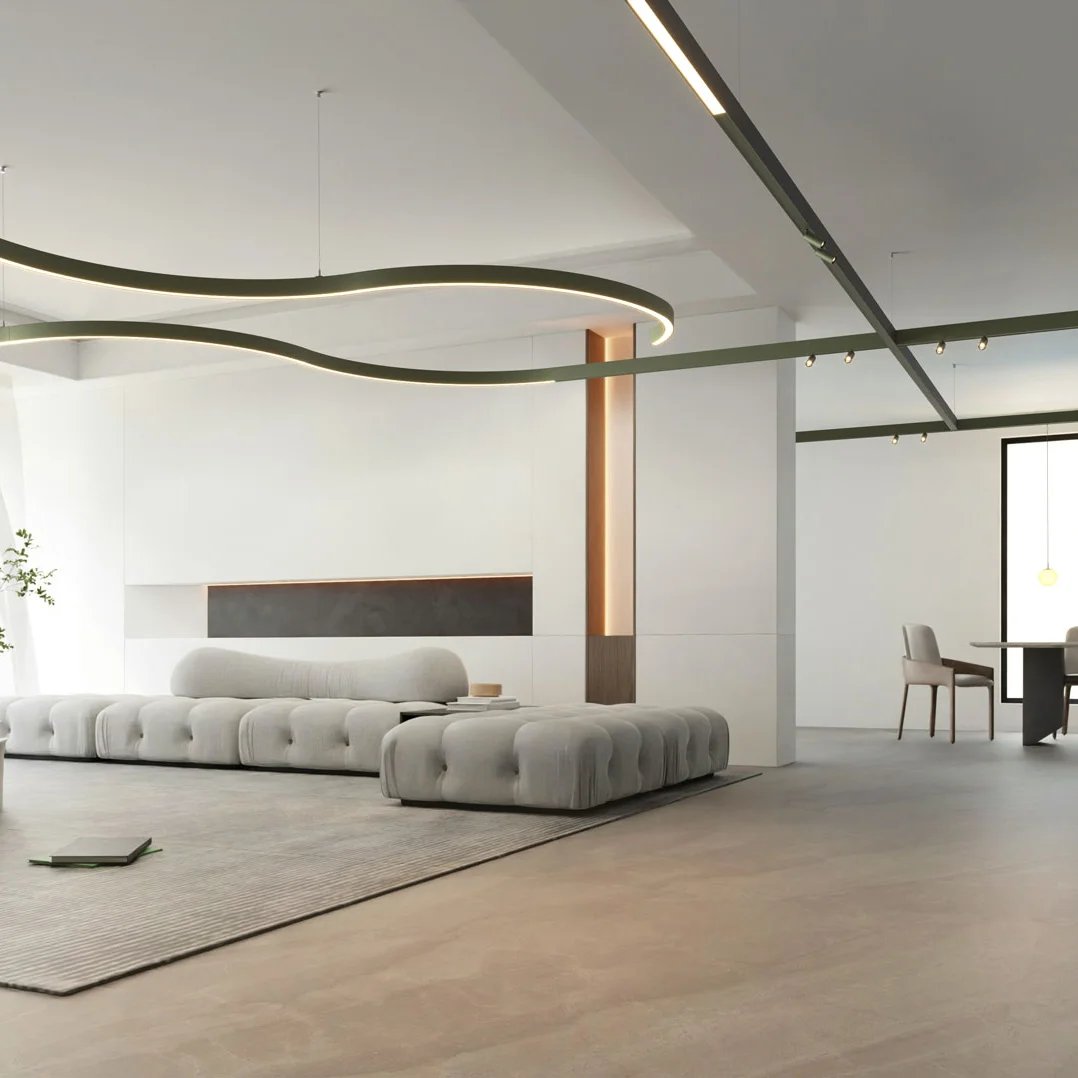

Hospitality
Decorative inserts and refined geometries enhance spatial atmosphere while preserving architectural clarity.
Office
FORTIES creates highly efficient, glare-controlled lighting environments tailored to professional workspaces. Tunable White and integrated control options support dynamic workplace concepts.
Retail
Curved modules and precise inserts guide customer attention and define zones within retail environments.
Hospitality
Decorative inserts and refined geometries enhance spatial atmosphere while preserving architectural clarity.
Office
FORTIES creates highly efficient, glare-controlled lighting environments tailored to professional workspaces. Tunable White and integrated control options support dynamic workplace concepts.
Retail
Curved modules and precise inserts guide customer attention and define zones within retail environments.
Hospitality
Decorative inserts and refined geometries enhance spatial atmosphere while preserving architectural clarity.
FORTIES empowers designers to shape light without limits. Modular freedom, technical precision and aesthetic consistency meet in one system platform.
✺
BENEFITS
Why Choose FORTIES
✺
Maximum design flexibility with straight and curved modules
✺
Wide insert portfolio: linear, spot and pendant solutions
✺
Broad range of optics for tailored Distribution
✺
Smart 3D Configurator for cost-efficient planning and driver placement
✺
Elegant 45 mm profile for consistent system appearance
✺
Easy installation to reduce mounting time and project cost
✺
5-day production guarantee
✺
Tailored solutions on request
